Working with Roofs
Roof Properties

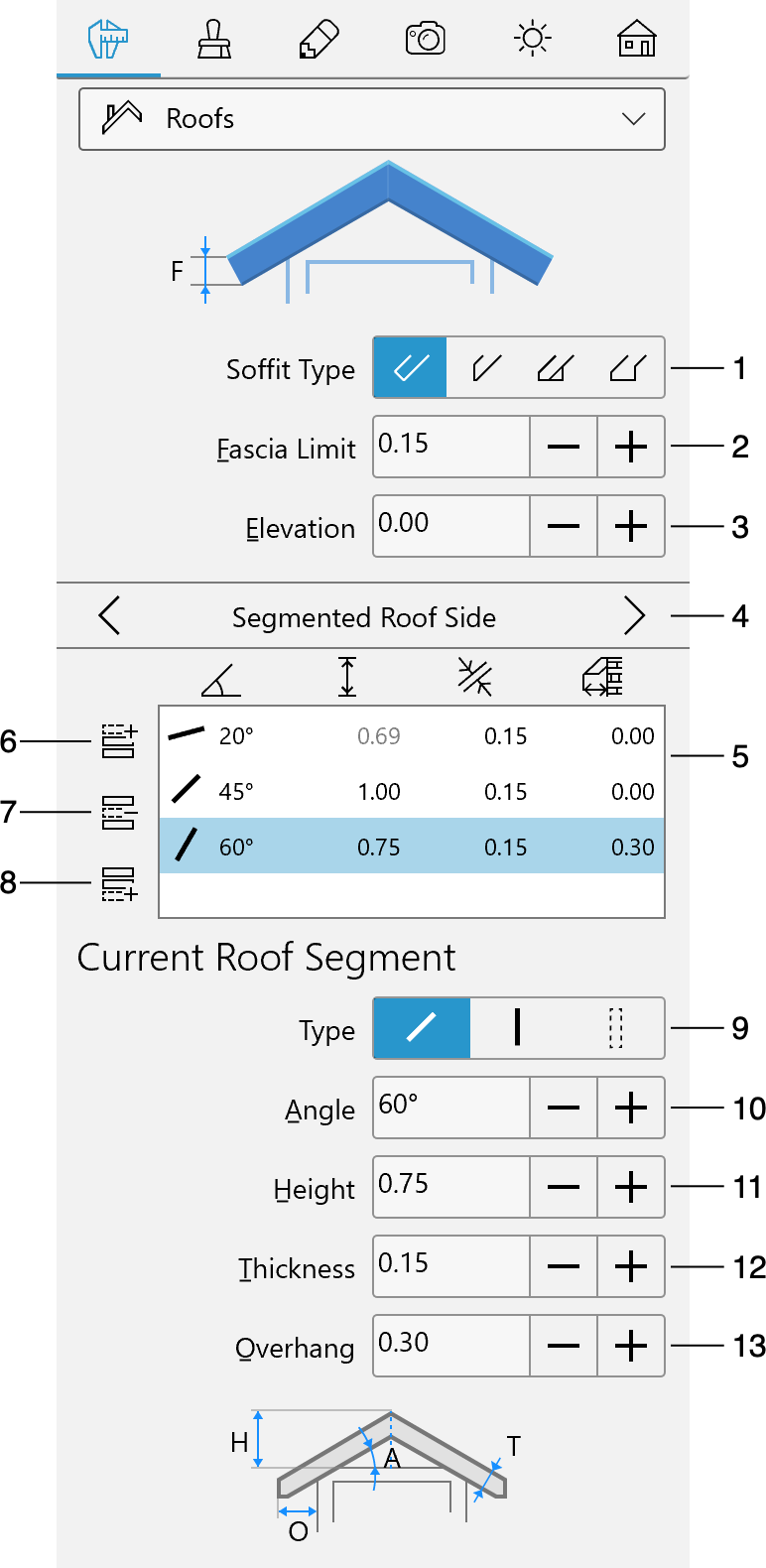

The geometric properties of roofs are located in the Object Properties tab of the Inspector.

1 β The type of the soffit. You can choose either basic, simple, horizontal, or box end soffit.
2 β The maximum size of the fascia.
3 β The elevation of the roof in relation to the floor level.
4 β Select another roof side. The two buttons select roof sides in a circle forward or backward.
5 β The list of segments of the selected roof side and parameters of each segment.
6 β Add a roof segment above the selected one.
7 β Delete the selected roof segment.
8 β Add a roof segment below the selected one.
9 β The roof segment type. Slope creates a tilted segment. Gable makes the segment vertical. Hole makes the selected segment disappear.
10 β The angle of the selected roof segment. You can adjust the angle of Slope segments only.
11 β The height of the selected roof segment. Note that you cannot modify the height of the uppermost or a sole segment.
12 β The thickness of the selected roof segment.
13 β The overhang distance of the selected roof segment.

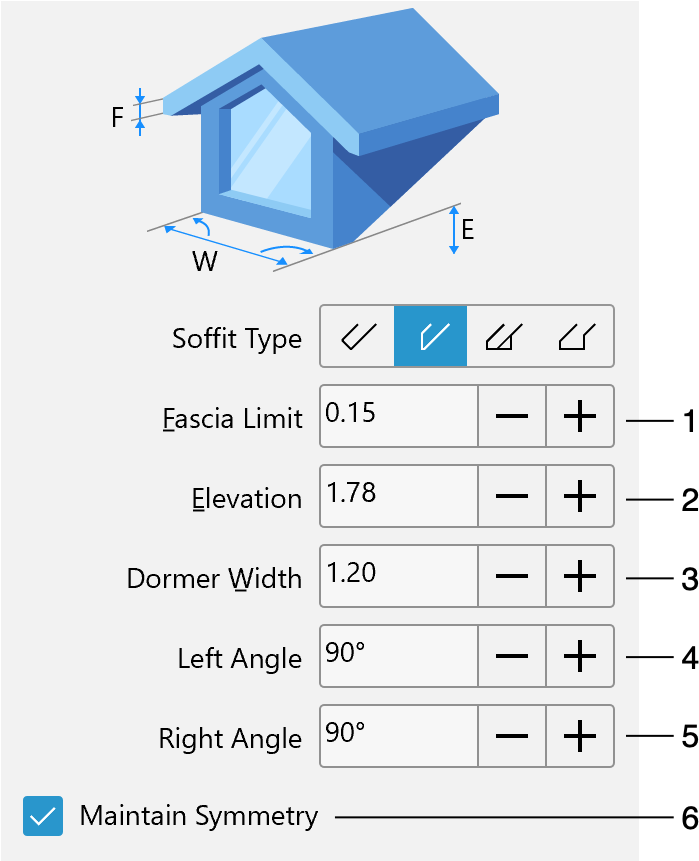

Additional Settings for Dormer Windows

1 β The maximum size of the fascia.
2 β The elevation of the dormer in relation to the floor.
3 β Dormer width.
4 and 5 β Angles of the left and right sides of the dormer. Changing these angles, you change the dormer top view from rectangle to trapezium or parallelogram.
6 β Keep dormer angles equal while changing one of them.
